Scale not calibrating and not showing accurate weight. It can also be stuck at 0, or 119. 119 is the mac weight it will show.
Needs to be done through programming
- Open Siwatool on the Laptop
- Select the correct unit
- Open the previous saved program
- Connect to the unit
- On the crescent wrench set it in service mode
- Communication - Send
- On empty scale, set calibration 0 (under crescent wrench)
- On Full batch in sclae, set calibration 1(under crescent wrench)
2024-09-04 10:04:59
Kettles
2
206
1084
Encoder fault came on packager 3.
.It got worse when slowed down. Better when spead up, gone when increasing the vertical seal speed.
2024-09-04 10:06:40
3
206
1084
Creases on the back seal.
Or film is bunching up on the bottom of the former
This comes from the vertical seal being too tight on the bottom. It is therefore created when the film is very tight between the bottom of the former and the vertical seal.
2024-09-03 20:20:28
5
206
Encode fault and fill position error.
Increased pressure on the pull belts to get better grip.
Open Siwatool
Select the correct unit
Open the previous saved program
Connect to the unit
On the crescent wrench set it in service mode
Communication - Send
On empty, set calibration 0
On Full batch, set calibration 1
2024-10-15 16:40:56
8
206

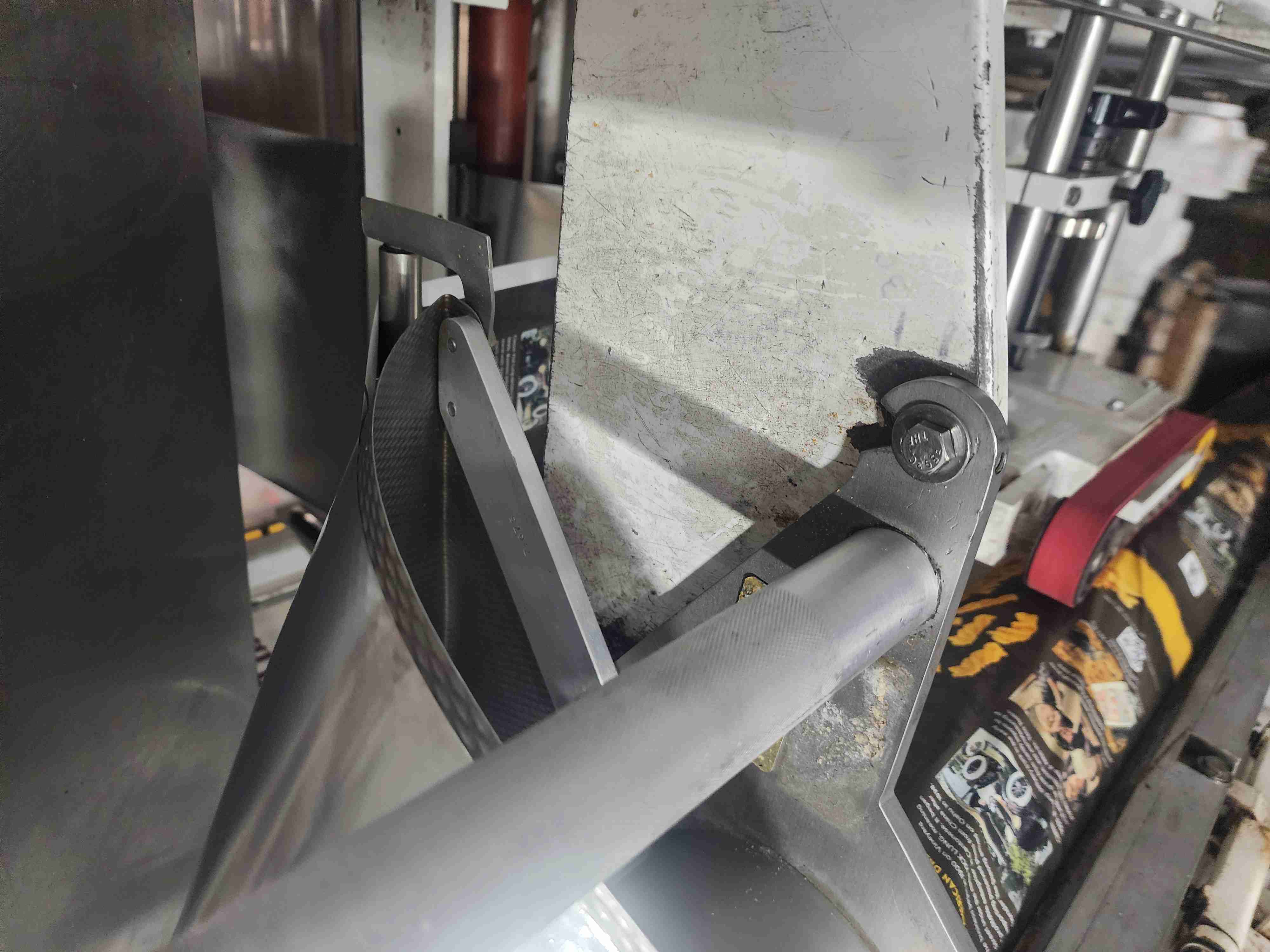

Film pulling unevenly on 5 oz Ikea former.
The former was on the second hole in instead of the first hole. This caused the pull belt to not be centered in the former causing random walking if the film. Once we moved to the front holes it worked well.
2025-02-28 00:29:44
9
206
Was not getting enough product
The yellow sensor stopped the vibratory too early and did not allow enough product.
2025-02-28 00:32:23
10
206
Controlling speed of tension motor
Utilized a 1.225 K Ohms potentiometer between W and CW, and a voltage isolator 0-10V on W and CCW. This allowed us to control it with the voltage isolator through the PLC.
If the potentiometer is adjusted the overall speed changes. The settings in the PLC will still make a difference, just on a different scale, e.g faster scale or slower scale.
The motor has resistance when closed and film in it. So the speed we see with it without film in it is not the same as with the film.
For some reason, a regular dc controller did not work well on low speeds for the motor. Has to be the tension one.
2025-04-28 19:51:42
11
206
Filter gets clogged right away due to high soaps clogging the filters. Pressure immediately climbs and then goes down due to the pressure protection.
Dilute with more oil and dalsorb
Or
Take out in a tote, then add back slowly into other treatments.
2025-09-22 15:16:19
12
206
RecommendedSettings
I 100
A 30
P 50-100
F 22-26 only change if ACC is 0
E.S.P 1
4.20. 0
ACC 1 if blue sensor works, otherwise 0
PA 100
I.A. 100
A.F.C - find frequency
2025-09-22 15:17:17
13
206

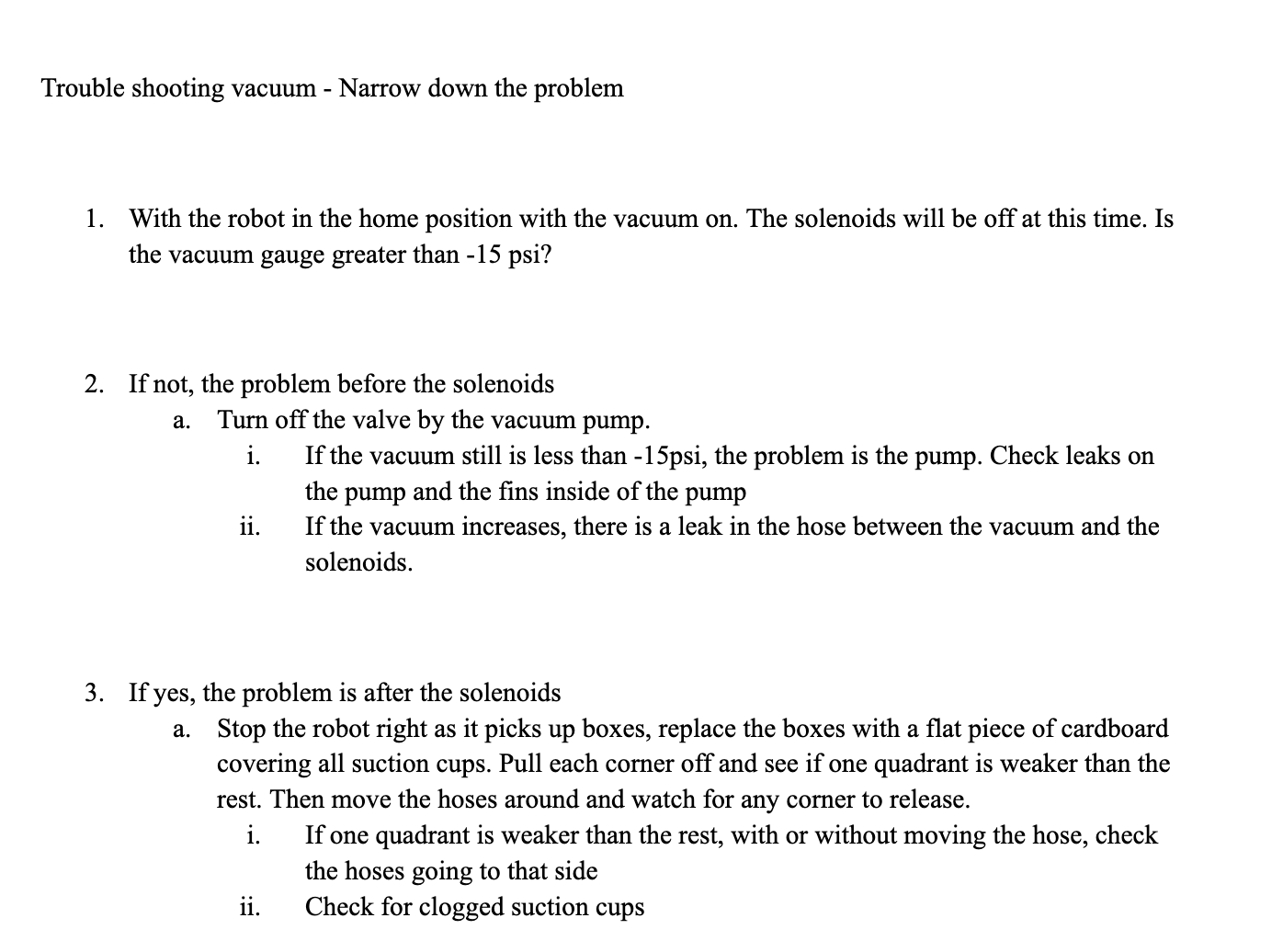

Loosing vacuum
Read instructions in picture.
2025-09-24 20:44:28
14
206

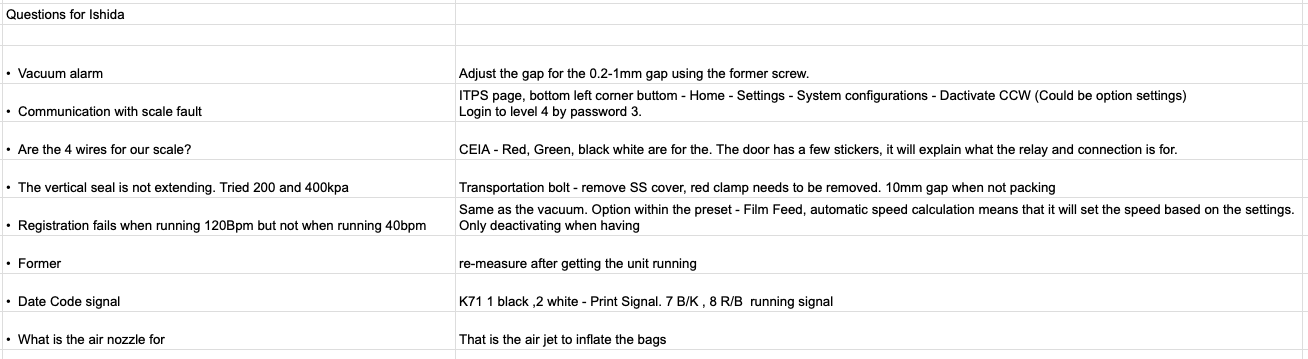

Installation issues
Talked with the engineering and got the following answers
2025-09-29 08:59:53
15
206

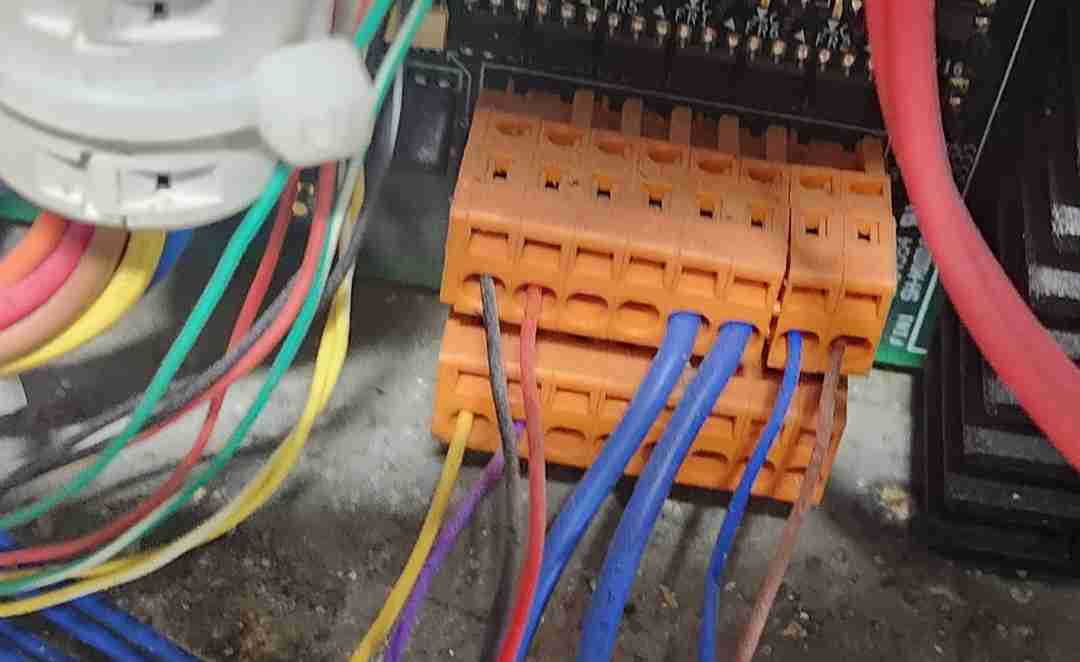

Wiring inside the scale
Picture of wiring
2025-10-25 13:13:27
16
206

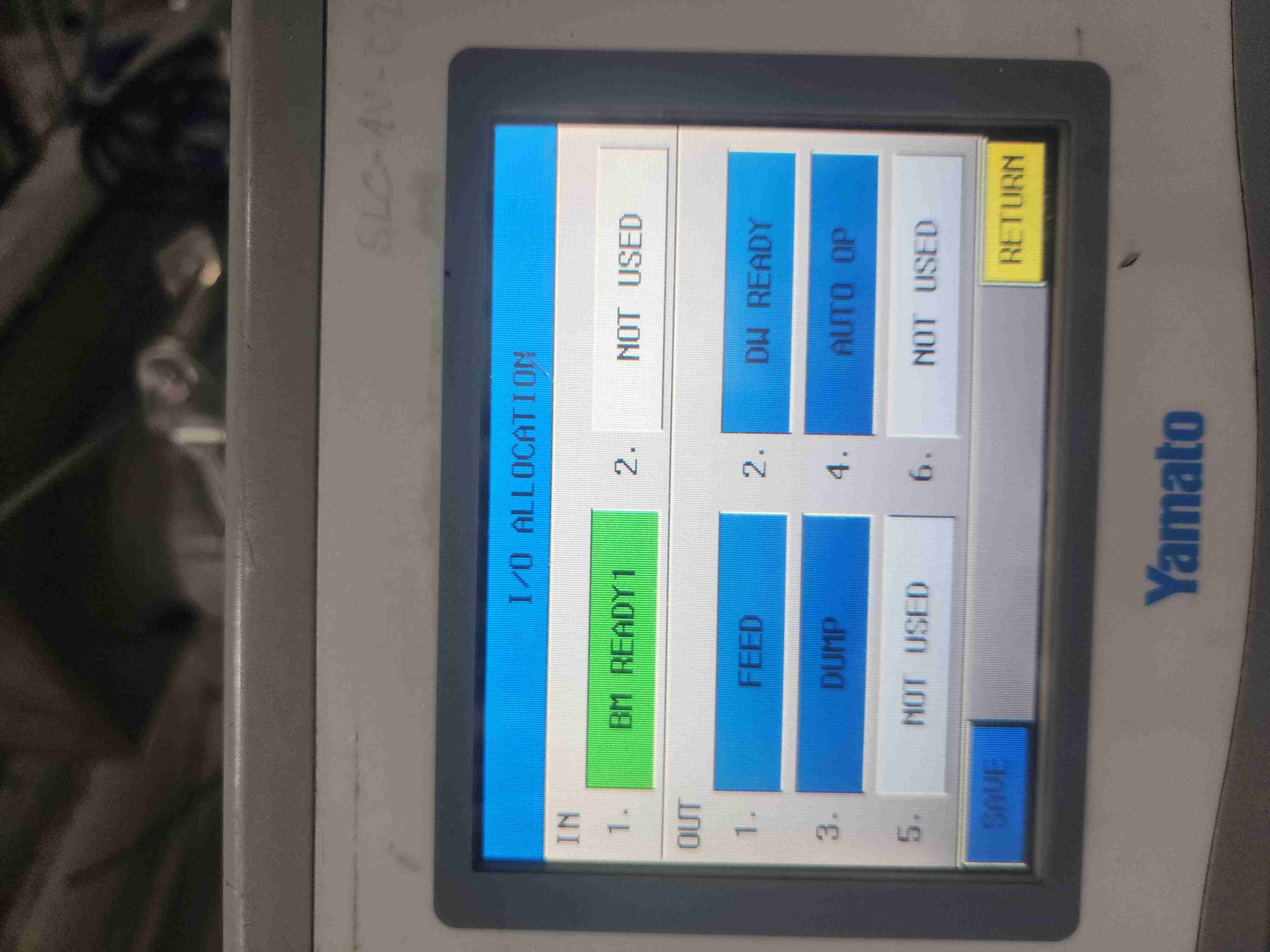

IO setup
2025-10-25 13:14:05
17
206

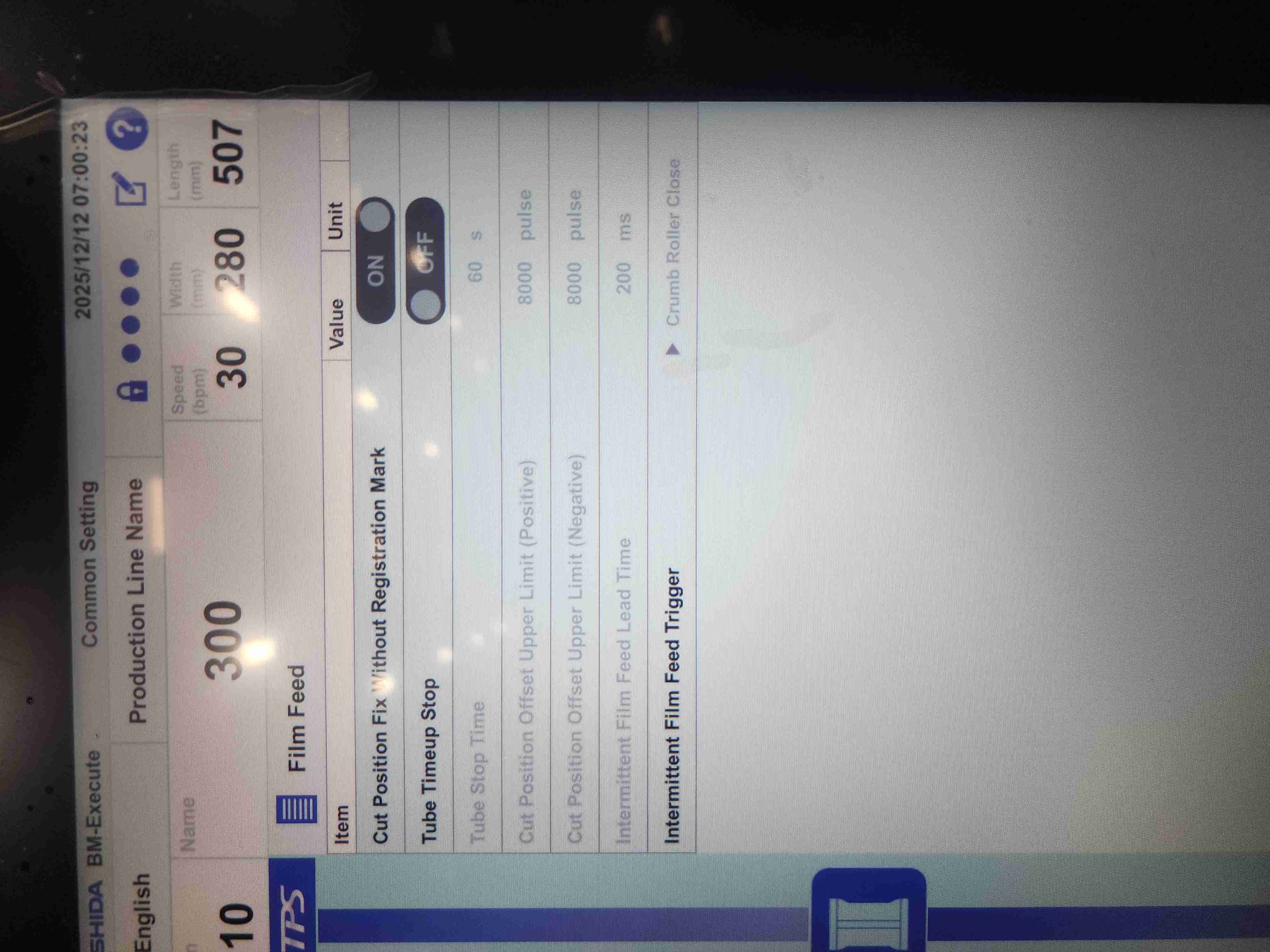

Film feed error. It stopped at different places at times. Only by 8mm max.
Increased the allowed tolerance.
2025-12-11 15:03:49
18
206
Back seal jet or air cooler stays on
Pull the valve screw and adjust it to desired volume. Nothing on the screen
2025-12-22 18:42:40
19
206
Pull belts were slipping and vertical seal was inconsistent and weak on Smash Kitchen.
We changed to the 7.62" former, moved out the heater as much as possible as we noticed that the rubber wheel was hitting the former before the heater, we also adjusted pressure on pull belts and vertical seal belt until we had a good seal. The vertical seal was also moved so that the heating element lined up with the left side of the backing rubber.
